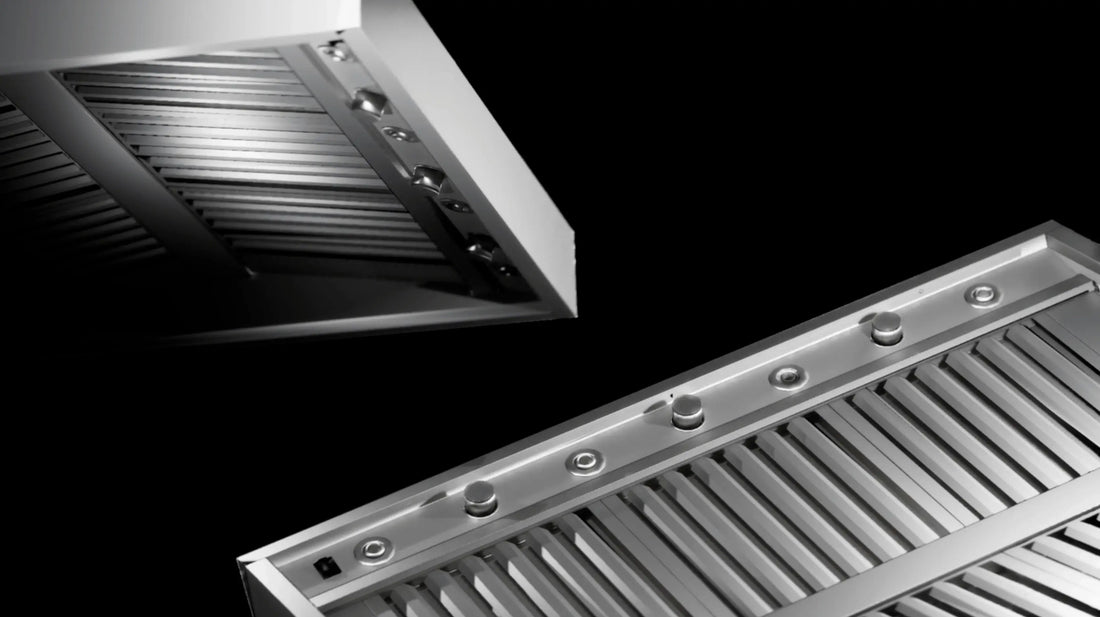

Common Installation Tips and Best Practices for Proline Range Hoods

Installing a range hood is one of those jobs where the details matter.

A hood can be powerful, well built, and perfectly sized, but if it's mounted too high, tied into undersized ductwork, or installed without enough support, it won't perform the way it should. The good news: most installation mistakes are avoidable with a little planning.

Here are the practical range hood installation tips we recommend before you mount your Proline hood.

1. Read the Manual Before You Cut, Drill, or Wire Anything

Start with the installation manual and spec sheet for your exact model. Not just the hood style, the exact model.

A wall mounted range hood, under cabinet range hood, island range hood, and custom insert all install differently. Even within the same category, duct size, chimney setup, blower layout, and mounting hardware can vary.

Before installation, confirm:

• Hood width
• Hood depth
• Mounting height
• Duct diameter
• Venting direction
• Electrical requirements
• Chimney extension needs
• Wall stud, cabinet, or ceiling joist locations
• Whether your model is ducted or convertible to ductless

If something does not match your kitchen layout, stop and solve it before drilling holes.

2. Choose the Right Mounting Height

Mounting height affects capture. Too low, and heat can damage the hood. Too high, and smoke, grease, and odor escape before the hood can pull them in.

Indoor Proline Range Hoods

For indoor kitchens, Proline recommends mounting the hood 28 to 36 inches above the cooktop.

That applies to:

• Wall mounted hoods
• Under cabinet hoods
• Island hoods
• Range hood inserts

This height gives the hood enough clearance from heat while keeping it close enough to capture smoke and grease.

Outdoor BBQ Range Hoods

For outdoor kitchens and BBQ hoods, mount the hood 36 to 42 inches above the cooking surface.

Outdoor grills produce more heat, smoke, and grease than indoor ranges. That extra clearance helps protect the hood from heat while still giving it a strong capture zone.

For outdoor setups, see models like the PLGW BBQ Ultra Wall Mounted Range Hood, built with thick 304 stainless steel and 2,000 CFM for high heat grilling.

3. Size the Hood Correctly Before Installation

A hood should be wide enough to capture the full cooking plume.

For indoor cooking, choose a hood at least as wide as your range. If possible, go 3 to 6 inches wider on each side for better capture.

For outdoor grills, go larger. Proline recommends an outdoor hood that is at least 12 inches wider than the grill, with about 6 inches of overhang on each side.

Example:

• 36 inch indoor range: choose a 36 inch hood or larger
• 48 inch outdoor grill: choose a 60 inch outdoor hood when possible

Outdoor air movement, cross breezes, and grill heat all make capture harder. The extra width helps keep smoke and grease from escaping into your patio, ceiling, cabinets, and seating area.

4. Plan the Duct Run Before You Install the Hood

Ductwork is not an afterthought. It is part of the performance system.

Before cutting into a wall, cabinet, ceiling, or roof, map the duct path from the hood to the outside. Look for the shortest, straightest route possible.

A good duct run should:

• Vent outdoors
• Stay as short as possible
• Use rigid metal ductwork
• Avoid unnecessary elbows
• Avoid sharp turns
• Avoid reductions in duct size
• Include a wall cap or roof cap
• Include a backdraft damper when needed
• Never terminate in an attic, garage, crawl space, or ceiling cavity

Never vent a range hood into the attic. Smoke, grease, moisture, and cooking contaminants need to leave the home.

5. Use Rigid Ductwork

Rigid ductwork is the best choice for range hoods.

Flexible duct may look easier to install, but it creates more resistance, traps grease more easily, and does not move air as efficiently. Over time, that can reduce performance and strain the blower.

For best results:

• Use rigid metal duct
• Seal duct joints with aluminum HVAC tape
• Avoid duct screws that protrude into the airflow path when possible
• Keep the inside of the duct as smooth as possible
• Do not use PVC duct for a range hood

The smoother and straighter the duct run, the better your hood will perform.

6. Match the Duct Size to the Hood

Duct size matters as much as CFM.

If the duct is too small, it chokes airflow. That can make the hood louder, reduce capture, increase grease buildup, and shorten motor life.

Always check the spec sheet for your exact model, but here are general guidelines:

For example:

• The Proline PLJW 101 uses an 8 inch duct and is available in 1,000/2,000 CFM configurations.
• The Proline PLFI 750 Island Range Hood is an 1,100 CFM island hood with a 10 inch duct.
• The PLGW BBQ Ultra Wall Mounted Range Hood uses dual 8 inch ducting or a 12 inch transition, depending on the installation.

Do not reduce duct size unless the manual specifically allows it. In most cases, reducing the duct will hurt performance.

7. Keep Elbows to a Minimum

Every elbow adds resistance. Resistance makes the blower work harder.

As a best practice:

• Use no more than two elbows when possible
• Leave at least 18 inches of straight duct between elbows
• Keep the first elbow at least 18 inches away from the hood
• Keep the total duct run as short as possible

Proline's general ductwork guidance recommends a maximum duct run of about 30 feet, with performance reduced by long runs and elbows. A shorter, straighter duct run is always better.

8. Secure the Hood to Studs, Joists, or Strong Cabinet Framing

A range hood is not something you want loosely attached.

Before mounting, locate the structure that will carry the weight:

• Wall studs for wall mounted hoods
• Strong cabinet framing for under cabinet hoods
• Ceiling joists or reinforced framing for island hoods
• A properly built wood frame for insert hoods

For wall mounted installations, secure mounting hardware into studs whenever possible. Wall anchors alone are not enough for heavier hoods unless the installation manual specifically allows that setup.

For island hoods, confirm the ceiling can support the hood before installation. Island hoods require secure ceiling support because the entire unit hangs from above.

For heavy or complex installations, get a contractor involved. It is cheaper than repairing a fallen hood, damaged range, cracked tile, or torn drywall.

9. Use a Helper, Especially for Island and Large Hoods

Some hoods can be installed by an experienced DIYer, but many installs are easier and safer with two people.

Use a helper when:

• The hood is wide or heavy
• You are installing an island hood
• You are aligning chimney pieces
• You are lifting the hood onto a wall bracket
• You are connecting ductwork above shoulder height
• You need to hold the hood level while fastening it

Proline's EZ mounting systems and brackets are designed to simplify installation, but weight and alignment still matter.

10. Confirm Electrical Requirements Before Installation

Most Proline range hoods use standard residential power, but you should always check your model's manual before wiring or plugging in the unit.

Best practices:

• Turn off power at the breaker before working
• Follow the wiring diagram in the manual
• Make sure the outlet or junction box is in the correct location
• Keep wiring clear of sharp metal edges and hot surfaces
• Use a licensed electrician if you are not comfortable with electrical work
• Follow local electrical code

Do not guess on wiring. If you are unsure, hire a professional.

11. Plan for Make Up Air When Needed

A powerful range hood removes a lot of air from the home. That air has to be replaced.

In tight modern homes, high CFM hoods can create negative pressure. That can make the hood louder and less effective. In more serious cases, it can cause backdrafting from combustion appliances like furnaces or water heaters.

Many jurisdictions follow IRC Section M1503.6, which requires an automatic make up air system for range hoods rated 400 CFM or higher. Local code varies, so check with your inspector or contractor.

Plan for make up air if:

• Your local code requires it
• Your home is tightly sealed
• You are installing a high CFM hood
• You cook often on high heat
• You have combustion appliances in the home
• Doors become hard to open when the hood runs on high

Proline does not sell make up air kits, and Proline hoods should not be hardwired directly into make up air systems. Work with an HVAC professional if your project requires one.

12. Use the Right Hood for Outdoor Kitchens

Do not use an indoor hood outdoors.

Outdoor hoods need to handle more heat, more smoke, more grease, moisture, weather exposure, and wind. Proline outdoor BBQ hoods are built for that job with 304 grade stainless steel and high CFM ventilation.

For outdoor installations:

• Use a ducted hood
• Avoid ductless setups
• Choose 304 stainless steel
• Size the hood wider than the grill
• Mount it 36 to 42 inches above the cooking surface
• Use rigid ductwork
• Plan for wind and cross breezes
• Clean filters regularly

Outdoor cooking is harder on ventilation equipment. Choose a hood built for the environment.

13. Check Chimney Extension Needs Before the Hood Arrives

If you are installing a wall mounted or island hood, measure your ceiling height before ordering.

Standard chimneys fit many kitchens, but taller ceilings may require a chimney extension. This is especially important for:

• 9 foot ceilings
• 10 foot ceilings
• 12 foot ceilings
• Vaulted or sloped ceilings
• Island hoods
• Outdoor wall hoods with high mounting heights

For example, the PLFW 755 Wall Mounted Range Hood has compatible chimney extension options for taller ceilings.

Measure first. It saves time and avoids a half finished install.

14. Test the Hood Before You Finish the Job

Before closing everything up, test the hood.

Run through this checklist:

• Fan turns on
• All speeds work
• Lights work
• Controls respond properly
• Filters are seated correctly
• Duct joints are sealed
• Air is venting outdoors
• No rattling or vibration
• Chimney is secure
• Hood is level
• Damper opens properly
• No air leaks around duct connections

If the hood sounds unusually loud, check the ductwork first. Restricted ducting, tight elbows, undersized duct, or a blocked cap can all create noise and poor airflow.

15. Clean Filters Regularly After Installation

Installation does not end when the hood turns on.

Clean filters every few weeks if you cook often, especially if you fry, sear, grill, or cook with oil. Proline stainless steel baffle filters are dishwasher safe on many models, making maintenance simple.

Clean filters help:

• Maintain airflow
• Reduce grease buildup
• Protect the blower
• Improve capture
• Extend the life of the hood

A well installed hood still needs regular maintenance to perform its best.

Common Range Hood Installation Mistakes to Avoid

Here are the big ones:

1. Mounting the hood too high. Smoke and grease escape the capture area.
2. Mounting the hood too low. Heat can damage the hood and increase fire risk.
3. Using flexible ductwork. It restricts airflow and traps grease.
4. Reducing duct size. This chokes the hood and can make it louder.
5. Too many elbows. Every turn adds resistance.
6. Venting into an attic or garage. Always vent outside.
7. Skipping make-up air planning. High CFM hoods need replacement air.
8. Mounting into weak framing. Secure the hood to studs, joists, or reinforced structure.
9. Forgetting chimney extensions. Measure ceiling height before ordering.
10. Installing an indoor hood outdoors. Use a true outdoor-rated BBQ hood for outdoor kitchens.

Final Installation Checklist

Before you call the job done, confirm:

• Hood is the right width for the cooking surface
• Hood is mounted at the correct height
• Hood is level
• Mounting hardware is secured to proper structure
• Duct size matches the model specs
• Ductwork vents outdoors
• Duct joints are sealed with aluminum tape
• Duct run is short and straight
• Elbows are minimized
• Wall cap or roof cap is installed
• Electrical is safe and code compliant
• Make up air has been considered
• Filters are installed
• Fan speeds and lights work
• No vibration, rattling, or air leaks

A clean installation makes a real difference. Your hood will run quieter, capture more smoke and grease, and last longer.
