Details

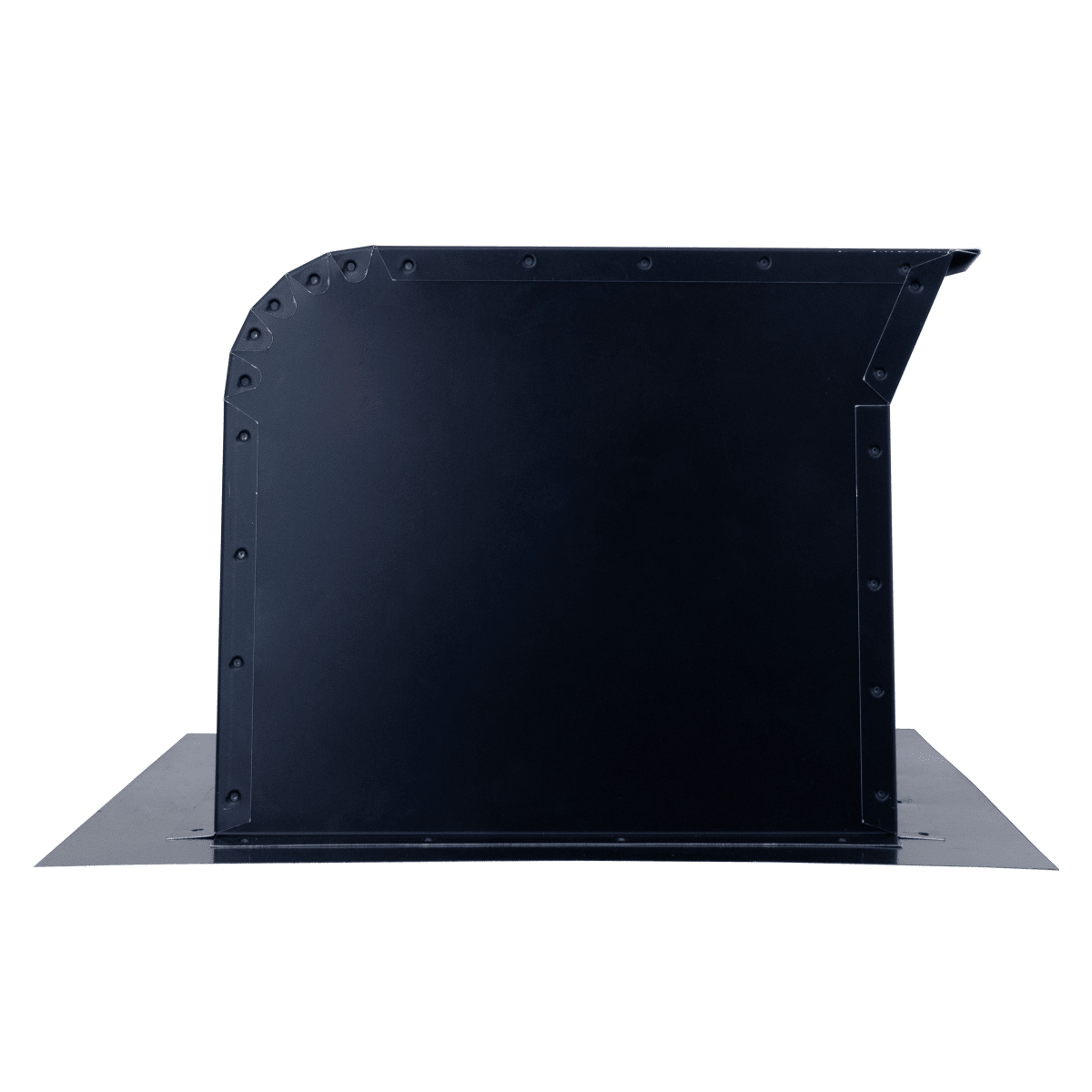

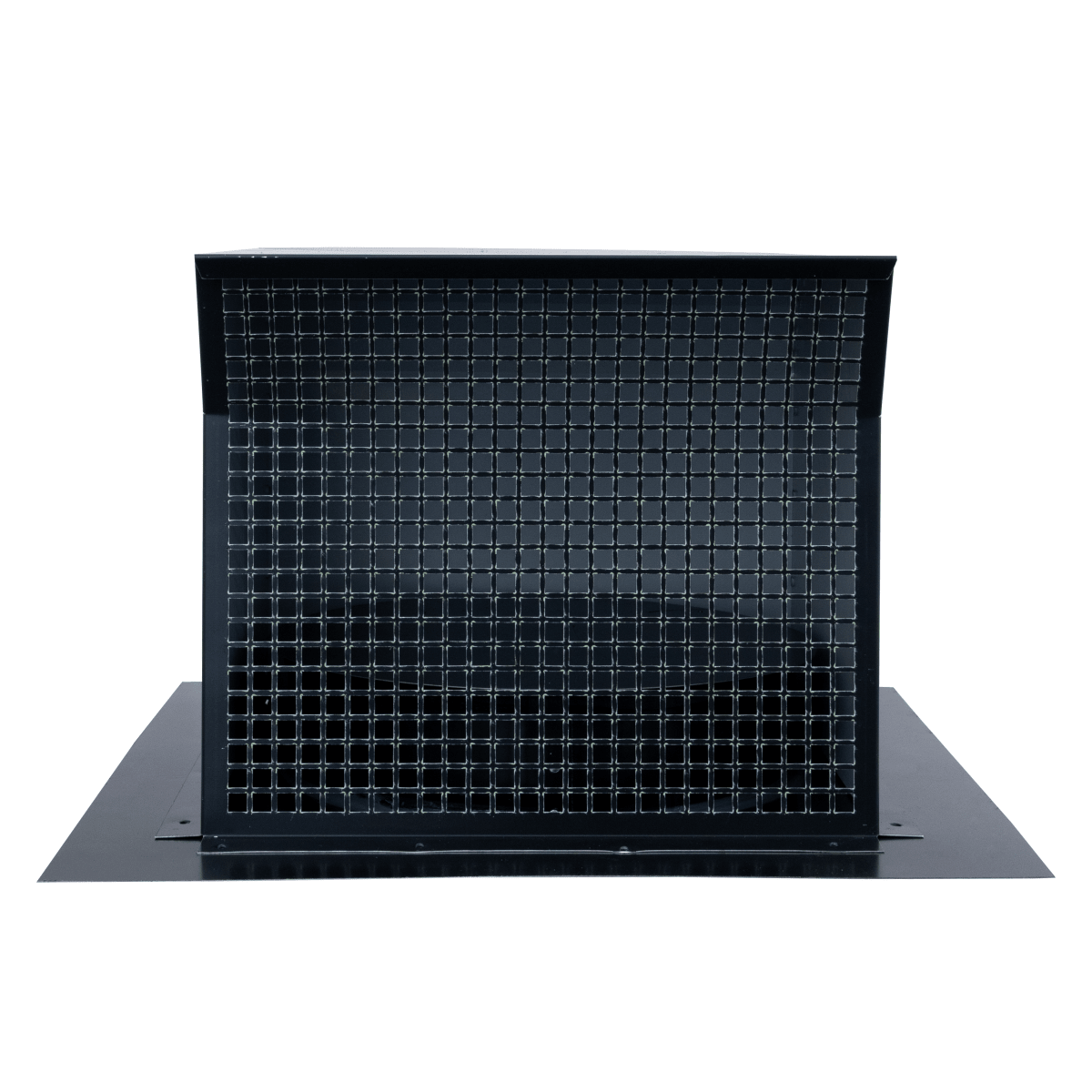

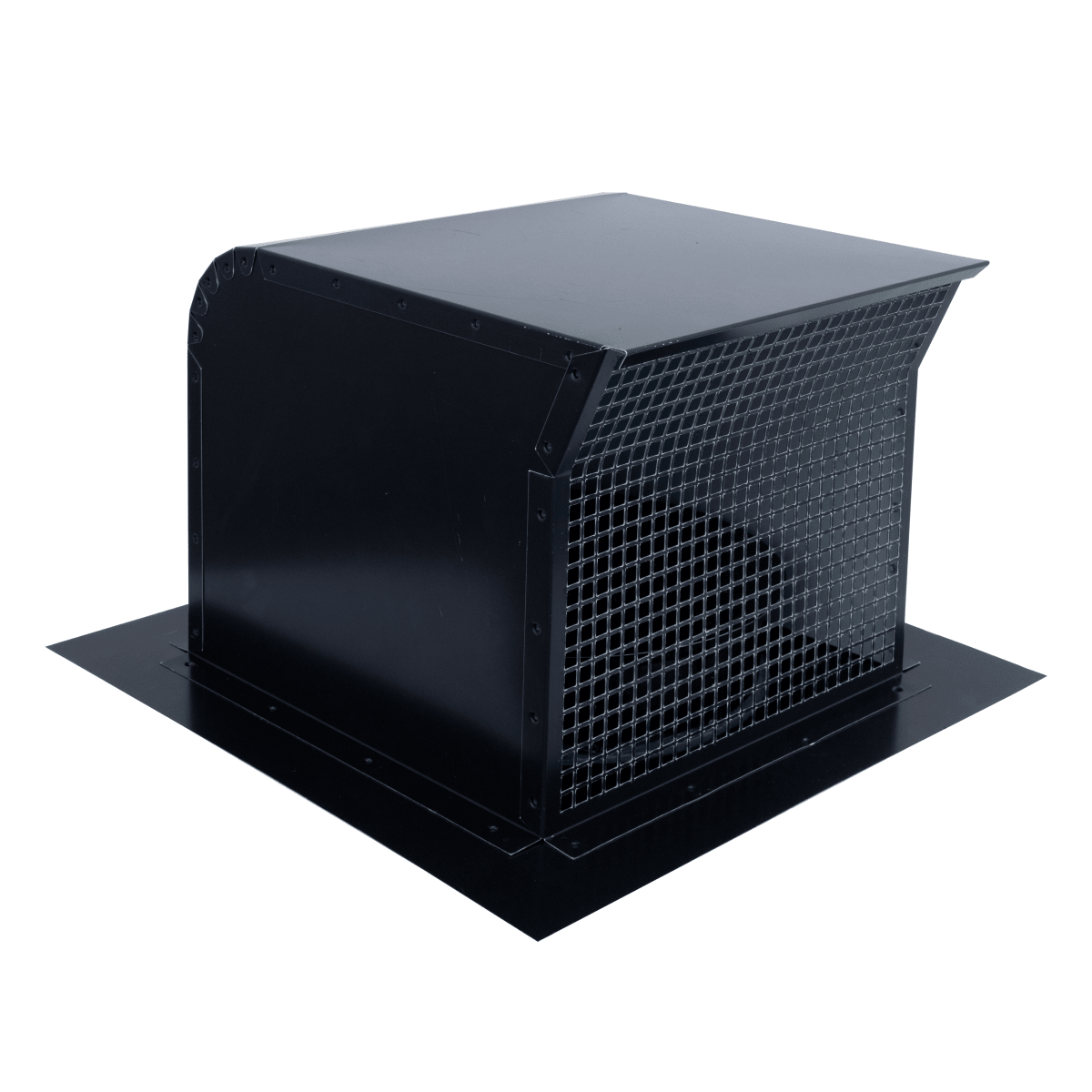

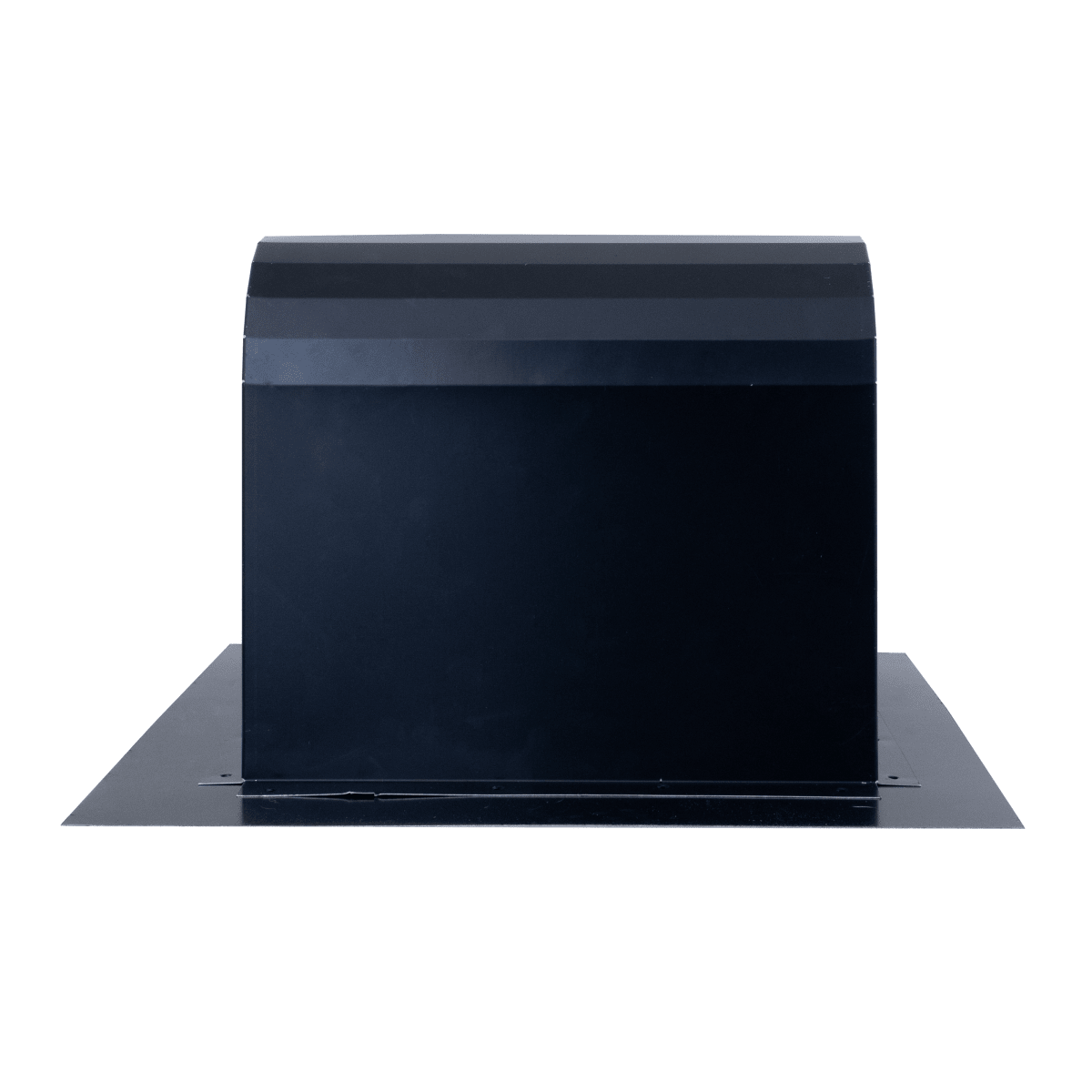

The 12" BBQ High Performance Roof Cap is the roof termination built for Proline's outdoor BBQ ventilation systems. It's a full 12" round duct connection — no reducers, no transitions, no bottleneck at the point where exhaust needs to move fastest.
Sized for the airflow you paid for
A high-CFM BBQ hood is only as good as its weakest restriction, and on most installations that restriction is the roof cap. Terminating a 12" duct into a single 8" or 10" cap raises static pressure, forces the blower to work harder, and cuts the airflow actually reaching open air. This cap keeps the full 12" diameter all the way through, so the system performs the way it was engineered to.
Built for weather, not just airflow
Constructed from powder-coated PAC-CLAD steel — an architectural-grade coated steel used on standing seam roofing and commercial metal panels. It's built to hold its finish through UV exposure, rain, snow, and freeze-thaw cycling rather than chalking or rusting after a few seasons on a roof.
An integrated gravity backdraft damper seals the duct when the hood is off, keeping cold air, wind-driven rain, and pests from traveling back down the line into your outdoor kitchen.
Features

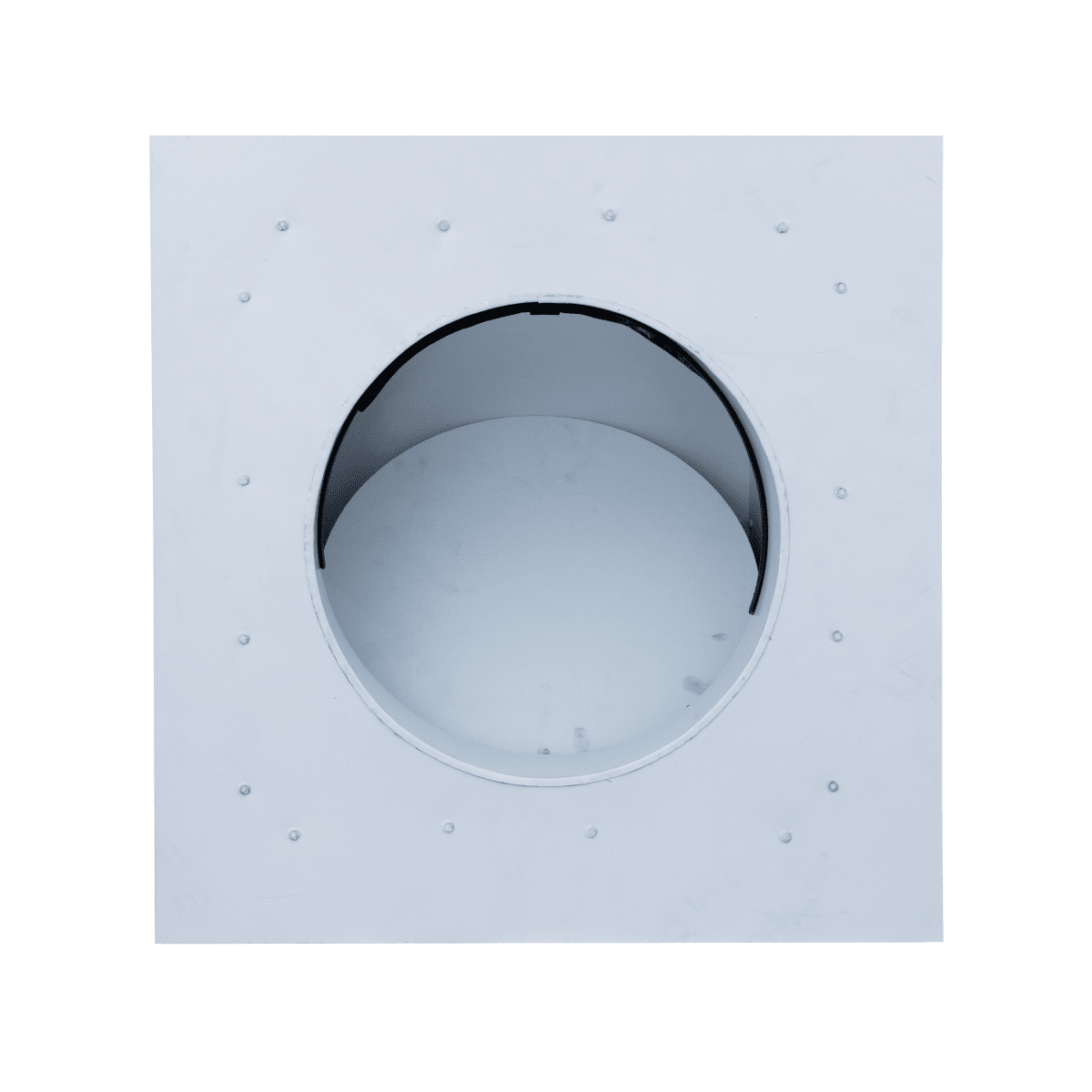

- 12" round duct connection — full diameter, no reduction or transition required
- Integrated gravity backdraft damper — seals automatically when the blower is off
- Powder-coated PAC-CLAD steel construction — architectural-grade weather resistance
- 2 15/16" flange for a clean, sealable roof penetration
- Compact 14.125" W x 16" D x 12" H profile keeps roofline impact minimal
- Backed by a 3-year limited warranty
What it fits
- Proline BBQ wall-mounted range hoods with chimney
- Proline BBQ island range hoods
- Any outdoor ventilation system terminating in 12" round rigid duct
Not sure what duct size your hood requires? Check your model's spec sheet or call us at 801-973-3959 — we'll confirm before you order.
Specifications
- Duct size: 12" round
- Dimensions: 14.125" W x 16" D x 12" H
- Flange: 2 15/16"
- Base footprint: 20" x 20"
- Material: Powder-coated PAC-CLAD steel
- Damper: Integrated gravity backdraft damper
- Application: Outdoor BBQ range hoods
- Included: Roof cap only
- Warranty: 3-year limited
Installation notes
Mount to a level or low-pitch roof surface for correct damper operation. The integrated damper is gravity-operated, so it needs to sit close to horizontal to seal properly — on pitches above roughly 6:12, build a level curb so the cap sits flat.
Keep duct runs short and straight, use rigid duct rather than flex, and never reduce below 12" anywhere between the hood and the cap. Seal all joints with foil tape or duct sealant, and follow local code for clearance from ridges, valleys, and adjacent openings.
Frequently asked questions
Can I use this with a 10" duct run?
Not directly. This cap is built for a full 12" connection. Reducing to it defeats the purpose — you'd be creating the restriction the cap exists to eliminate. For dual 8" or 10" systems, look at our dual duct high performance roof cap instead.
Does it include a damper?
Yes. The gravity backdraft damper is integrated into the cap, so no separate inline damper is required for this model.
Does it include flashing?
The cap ships with a 2 15/16" flange for sealing into the roof. Flashing material, sealant, and fasteners are sourced separately to match your roof type.
Can I install this myself?
Many homeowners do, but it involves cutting a penetration in your roof deck and making it watertight. If you aren't confident flashing a penetration correctly, hire a roofer — a poorly sealed cap is a leak waiting to happen.
Will this work on a steep roof?
Up to about 6:12 mounted directly. Steeper than that, the gravity damper starts to hang open or bind depending on hinge orientation. Use a level curb to bring the cap back to horizontal on steep pitches.
