How to Install Grease Tray & Baffle Filters on Your Proline Range Hood

How to Install Grease Tray & Baffle Filters on Your Proline Range Hood - Proline Range Hoods

Installing your hood's grease management system: Your grease tray & baffle filters on your Proline range hood

Proper installation of your Proline outdoor BBQ range hood's filtration system ensures optimal performance. This guide walks through the essential steps for installing both the grease tray and baffle filters.

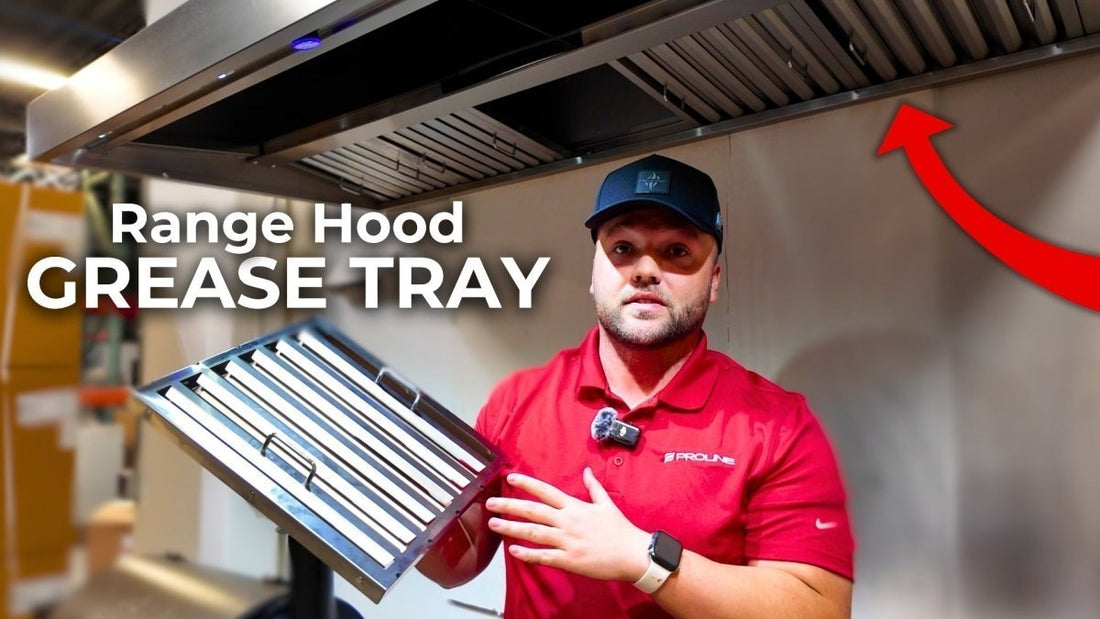

Watch our quick installation video above for a visual demonstration, or follow our detailed written instructions below.



Grease Tray Installation

The grease tray installation begins at the hood's underside front section. Position the tray from below, aligning the teeth that will connect to the hood's frame. Apply gentle pressure until you feel a snug fit - you'll hear an audible click as the teeth properly engage with the frame.

Spacer Installation

For outdoor BBQ series hoods equipped with spacers:

  1. Locate the middle section of the hood
  2. Insert one edge of the spacer
  3. Pivot back until it sits in position
  4. Slide the spacer completely to the end - full extension is crucial for proper fit
  5. Repeat for the second spacer on the opposite side

Baffle Filter Installation

The hood features two rows of baffle filters, requiring slightly different installation approaches:

Back Row:

  1. Find the middle section
  2. Insert filter partially
  3. Push back to create needed space
  4. Slide into final position

Front Row:

  1. Reverse the approach used for back row
  2. Insert through middle section
  3. Push back slightly
  4. Slide sideways into place

Need help with your installation? Our expert team is ready to assist. Browse our complete range of outdoor BBQ hoods and accessories or contact our support team. Shop Outdoor BBQ Hoods →

This simple yet crucial installation process ensures your hood's filtration system works effectively, maintaining clean air in your outdoor cooking space. For additional support or questions about installation, contact our team at support@prolinerangehoods.com. Or give us a call at 877-901-5530.
